OSENC Magnetic Separation
Magnetic field strength describes the field at a location; magnetic field gradient describes how rapidly that field changes with position. Magnetic attraction depends on both the target’s magnetic response and the spatial field conditions. Therefore, two separators with the same maximum surface reading can behave differently at a working gap or with fine contamination.
The useful comparison is a mapped, repeatable measurement tied to the actual application—not a single highest number found on the surface.
What a Gauss Reading Tells You
A Hall-probe reading reports magnetic flux density at the probe location and orientation. It can help verify pole pattern, repeat production measurements and identify changes when the same instrument, probe, fixture and method are used.
It does not by itself report the field gradient, pull force, capture rate, working-depth field or separation efficiency.
Why Gradient Matters Near Tubes and Poles

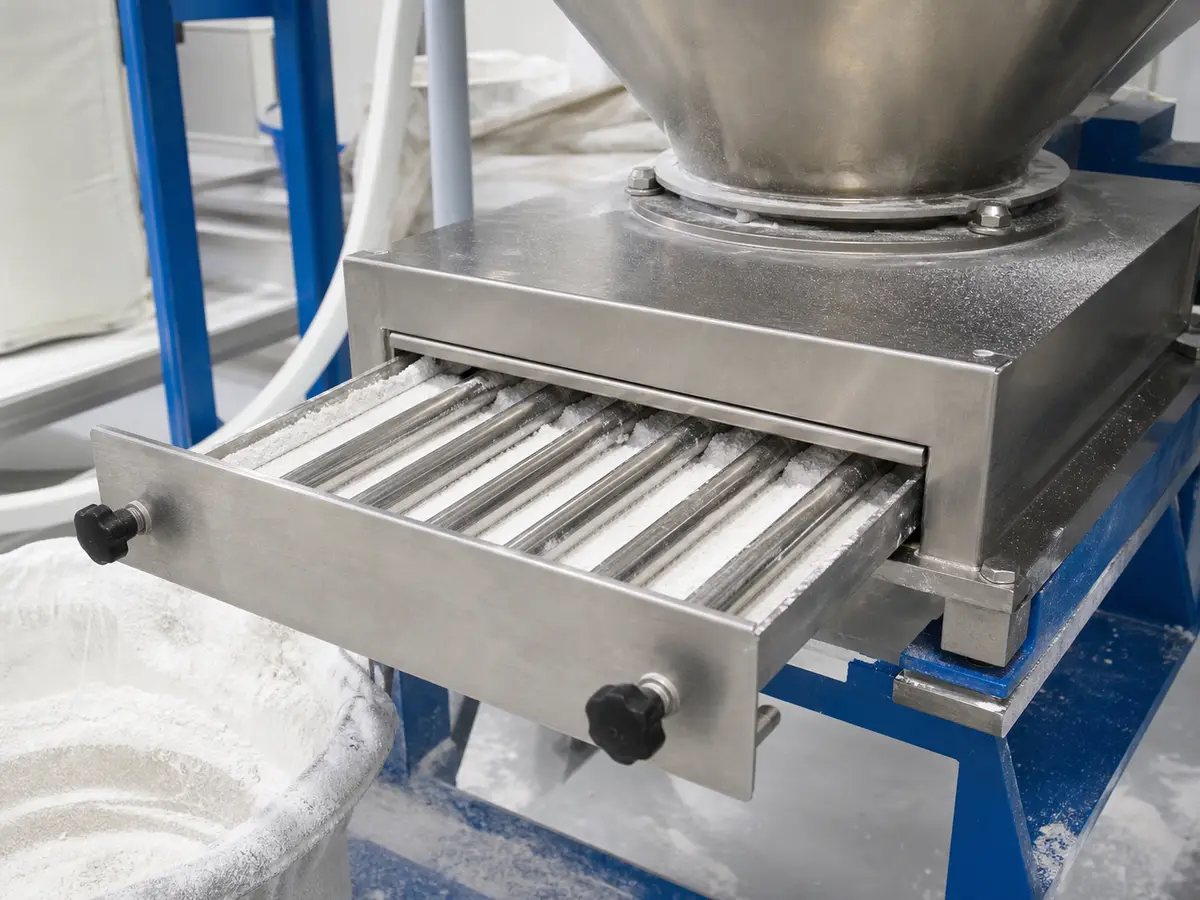

Magnetic tubes use alternating poles and shaped magnetic circuits to create strong changes in the field close to the tube surface. Fine susceptible particles passing near those zones can experience useful attraction. Moving the particle farther away—through a sleeve, product buildup or excessive tube spacing—can reduce both the field and its useful spatial variation.
A high maximum at one narrow pole does not mean the entire flow opening has that value. Map several defined positions if coverage matters.
Field Depth for Conveyor Applications
Suspended magnets face a different problem: they must influence target iron across the installation gap and burden. A design optimized only for a high face reading may not provide the required field distribution at rated suspension height. The correct report should identify the datum, height, grid, probe orientation and operating condition.
Three Comparisons That Are Not Valid
- Comparing one supplier’s maximum surface peak with another supplier’s average at a defined distance.
- Comparing a bare magnetic core with an easy-clean unit measured outside its sleeve.
- Assuming a tube surface reading predicts a suspended magnet’s lifting ability through a deep burden.
What a Useful Magnetic Map Should Record
- Product, serial or batch number and drawing revision
- Instrument and probe identification
- Calibration status and measurement range
- Probe orientation and contact or gap condition
- Measurement grid, pole locations and datum
- Maximum, minimum or individual readings as specified
- Temperature and excitation current where relevant
- Acceptance limits and reviewer
Which Test Should You Specify?
Use repeatable field measurements to verify magnetic distribution. Use a controlled pull-force test when the force against a defined test piece and gap is the decision. Use representative material trials when capture or product purity is the decision. These tests answer related but different questions.
Compare Gauss and pull force Build a field test report Specify pull-force testing
Which Magnetic Quantity Changes the Decision?
| Decision rule | Use field strength to describe magnetizing influence and field gradient to understand force variation; capture depends on both together with particle response and working distance. |
|---|---|
| Inputs to confirm | Measurement position, direction, air gap, pole geometry, target size and susceptibility, product speed, tube or drum coverage and any sleeve, belt or liner thickness. |
| Risk or limitation | Comparing isolated peak values measured at different locations or instruments can reverse the apparent ranking without predicting the real separation duty. |
| Buyer action | Ask for a field map or defined measurement grid tied to the drawing and then validate with representative targets at the working distance. |
How We Use This Technical Point in Selection
Magnetic Field Strength vs Magnetic Field Gradient: seller-side application review
- Your selection risk: A device name, surface Gauss value or static pull result can lead to the wrong purchase when material motion and working distance are ignored.
- What we review: We check your material, particle size, moisture, temperature, throughput, layer or flow geometry, target contamination, installation position and cleaning method.
- What we decide: We use the principle described above to compare magnetic circuit, exposure, retention and discharge conditions before we recommend or rule out a structure.
- Buyer value: This helps you reduce leakage risk, avoid an oversized or ineffective unit and connect the specification to a testable production objective.
- Boundary: We do not treat a simplified explanation as guaranteed separation performance; representative testing is needed when magnetic response or scale-up remains uncertain.
- Next step: Send the material and target, particle range, moisture, temperature, throughput, contamination, installation drawing, available space, cleaning preference and any sample or site video. Send the material and separation target
Project Support
Need help selecting the right magnetic solution?
Send us your material, flow condition, target metal, capacity, installation space and any drawings or site photos. We will review the application and recommend the next practical step.
Frequently Asked Questions
What a Gauss Reading Tells You?
A Hall-probe reading reports magnetic flux density at the probe location and orientation. It can help verify pole pattern, repeat production measurements and identify changes when the same instrument, probe, fixture and method are used.
Why Gradient Matters Near Tubes and Poles?
Magnetic tubes use alternating poles and shaped magnetic circuits to create strong changes in the field close to the tube surface.
Why is “Field Depth for Conveyor Applications” important for this decision?
Suspended magnets face a different problem: they must influence target iron across the installation gap and burden.
